Main Features

Advanced GNSS

GPS, GLONASS, Galileo, BeiDou, and QZSS.
Network Connectivity

Ethernet, 4G, and Wi-Fi.
Data Management

32 GB internal storage, expandable to 1 TB.
Continuous Operation

24/7 operation and 20 h of backup power.

Benefits and Performances

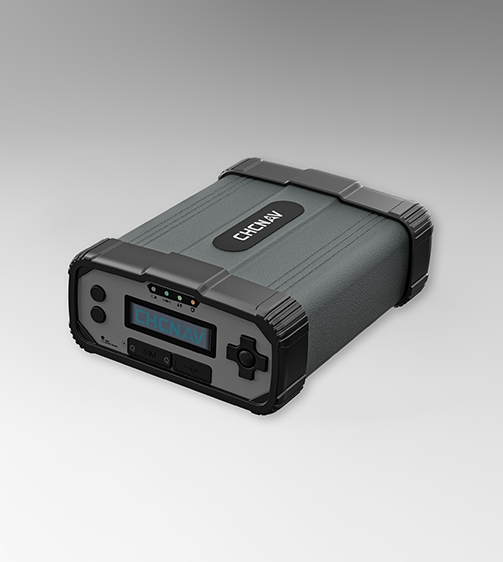

01 Advanced GNSS Tracking

Track GPS, GLONASS, Galileo, BeiDou, and QZSS constellation with the P5’s. High-quality GNSS raw data enable precise RTK corrections and reliable geospatial positioning for critical applications like deformation monitoring and infrastructure management.

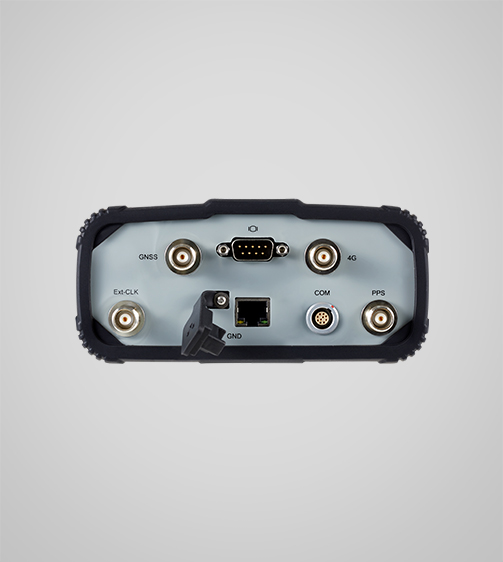

02 Versatile Network Connection

Secure data transmission with the P5’s robust network connectivity including Intranet, Ethernet, 4G, and Wi-Fi, with automatic failover between Ethernet and 4G to maintain uninterrupted service.

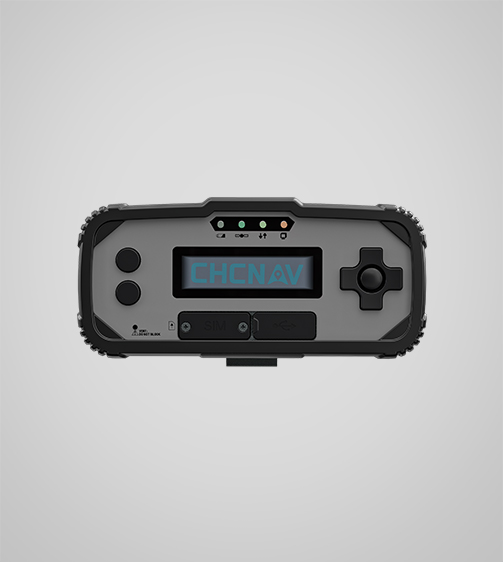

03 Smart Data Management

Manage large datasets with 32 GB of internal storage and up to 1 TB of external storage, and up to 8 simultaneous data sessions. The P5 embedded FTP server and FTP push capabilities ensure efficient data transfer and secure backups.

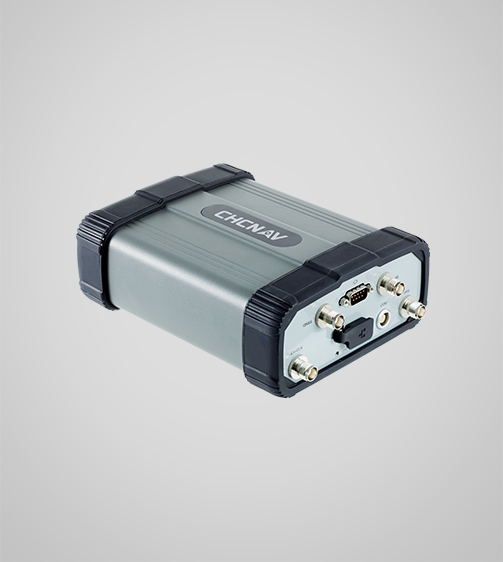

04 Multiple Power Sources

The P5 supports both DC and AC power inputs, ensuring reliable operations. The high-capacity battery provides up to 20 hours of backup power, guaranteeing uninterrupted service and minimizing downtime during power failures.

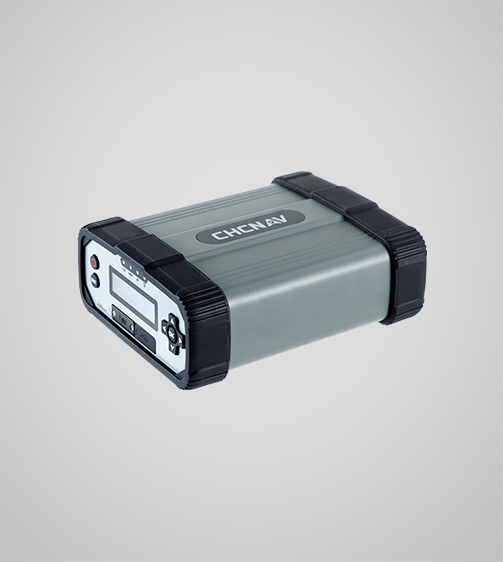

05 Enhanced Security and Reliability

The P5 security layers include user permissions, web interface restrictions, and HTTPS encryption, to prevent unauthorized access. Built-in automatic reconnection protocols and email alerts ensure continuous operation and quick recovery from network interruptions.

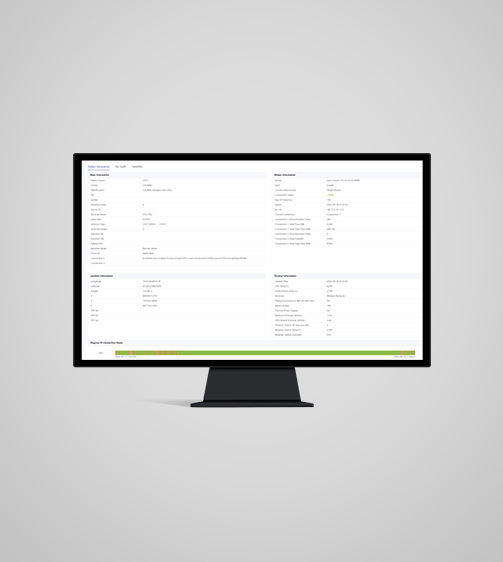

06 Comprehensive System Monitoring

Maintain operational awareness with the P5’s real-time status monitoring. The system provides continuous updates on power supply conditions, network status, and firmware versions, ensuring proactive maintenance and reducing the risk of downtime.

Detailed Specifications

Specifications

Resources

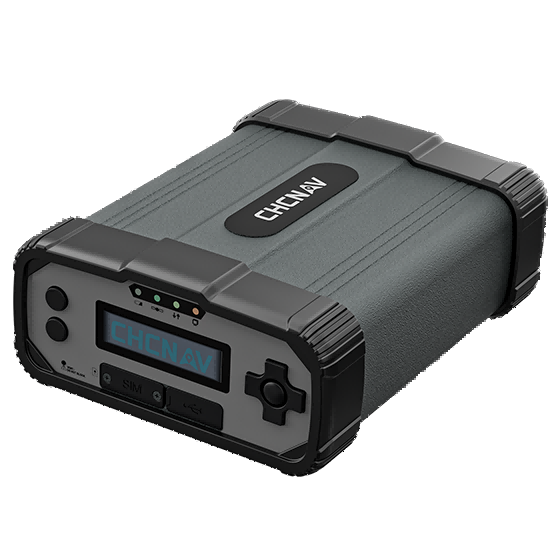

CHCNAV P5

GNSS Geodetic Reference Station
Positioning
- GNSS : Full GNSS
- Precision max. : 0.8 cm H / 1.5 cm V
Connectivity
- Wireless : Bluetooth, Wi-Fi
- Cellular : 4G LTE, Ethernet
- Modem : 410-470 MHz, Rx/Tx
Physical
- Weight : 2.24 kg
- Dimensions : 200 x 150 x 69 mm
- Battery life : Up to 20 hours
Download

English

P5_DS_EN.pdf

2.82 MB

Download

Explore our FAQs

1. What GNSS constellations does the P5 support?

The P5 supports GPS, GLONASS, Galileo, BeiDou, and SBAS, ensuring comprehensive and high-quality GNSS data tracking for precise positioning.
2. How does the P5 enhance GNSS network operations?

The P5, combined with CHCNAV’s CGBAS software, uses advanced algorithms to establish error resolution models, ensuring reliable RTK corrections and accurate positioning across the network
3. Is the P5 suitable for harsh environmental conditions?

Yes, the P5 is IP67-rated for dust and water resistance and operates in temperatures from -40°C to +65°C, making it suitable for challenging environments.
4. What are the connectivity options available with the P5?

The P5 provides versatile connectivity options, including Intranet, Ethernet, 4G, and Wi-Fi, with automatic failover for stable data streaming and secure communication.
